Self-aligning ball bearings
Feature:
The spherical form of the raceway surface of the outer ring makes these bearings self-aligned.They can automatically adjust the misalignment caused by the bending of shaft or the housing or th eccentricity.
Applications:
These bearings are mainly used in the transmission axles of wood processing machines 、textile machines、drive(driven) shafts、conveyers、 and roll shafts and so on.

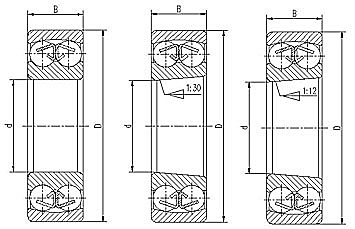

型号		尺寸 (mm)			载重 (KN)		重量(kg)
		d	D	B	Cr	Cor
		d	D	B	Cr	Cor
1200	1200K	10	30	9	5.48	1.2	0.035
2200	2200K		30	14	7.12	1.58	0.05
1300	1300K		35	11	7.22	1.62	0.06
2300	2300K		35	17	11	2.45	0.09
1201	1201K	12	32	10	5.55	1.25	0.042
2201	2201K		32	14	8.8	1.8	0.059
1301	1301K		37	12	9.42	2.12	0.07
2301	2301K		37	17	12.5	2.72	0.104
1202	1202K	15	35	11	7.48	1.75	0.051
2202	2202K		35	14	7.65	1.8	0.06
1302	1302K		42	13	9.5	2.28	0.1
2302	2302K		42	17	12	2.88	0.11
1203	1203K	17	40	12	7.9	2.02	0.076
2203	2203K		40	16	9	2.45	0.09
1303	1303K		47	14	12.5	3.18	0.14
2303	2303K		47	19	14.5	3.58	0.17
1204	1204K	20	47	14	9.95	2.65	0.12
2204	2204K		47	18	12.5	3.28	0.15
1304	1304K		52	15	12.5	3.38	0.17
2304	2304K		52	21	17.8	4.75	0.22
1205	1205K	25	52	15	12	3.3	0.14
2205	2205K		52	18	12.5	3.4	0.19
1305	1305K		62	17	17.8	5.05	0.26
2305	2305K		62	24	24.5	6.48	0.35
1206	1206K	30	62	16	15.8	4.7	0.23
2206	2206K		62	20	15.2.	4.6	0.26
1306	1306K		72	19	21.5	6.28	0.398
2306	2306K		72	27	31.5	8.68	0.5
1207	1207K	35	72	17	15.8	5.08	0.32
2207	2207K		72	23	21.8	6.65	0.44
1307	1307K		80	21	25	7.95	0.54
2307	2307K		80	31	39.2	11	0.68
1208	1208K	40	80	18	19	6.95	0.42
1208	2208K		80	23	31.9	10	0.51
1208	1308K		90	23	33.8	11.2	0.72
1208	2308K		90	33	54	16	0.93
1209	1209K	45	85	19	22.9	7.8	0.47
1209	2209K		85	23	32.5	10.6	0.55
1209	1309K		100	25	39	13.4	0.96
1209	2309K		100	36	63.7	19.3	1.25
1210	1210K	50	90	20	26.5	9.15	0.53
1210	2210K		90	23	33.8	11.2	0.6
1210	1310K		110	27	43.6	14	1.2
1210	2310K		110	40	63.7	20	1.65
1211	1211K	55	100	21	20.6	10.03	0.708
1211	2211K		100	25	19.7	9.42	0.824
1211	1311K		120	29	39.8	18.2	1.57
1211	2311K		120	43	57.5	23.51	2.1
1212	1212K	60	110	22	23.3	11.63	0.892
1212	2212K		110	28	27.1	13.24	1.16
1212	1312K		130	31	44.8	21.15	1.98
1212	2312K		130	46	66.4	27.63	2.61
1213	1213K	65	120	23	24	12.37	0.915
1213	2213K		120	31	33.4	16.33	1.5
1213	1313K		140	33	48.2	22.93	2.38
1213	2313K		140	48	73.7	32.4	3.22
1214	1214K	70	125	24	26.5	13.58	1.29
1214	2214K		125	31	33.8	17.03	1.63
1214	1314K		150	35	57.5	27.86	2.98
1214			150	51	83.8	37.33	3.92
1215	1215K	75	130	25	29.9	15.58	1.35
1215	2215K		130	31	34.1	17.94	1.71
1215	1315K		160	37	61.3	29.91	3.55
1215	2315K		160	55	94.7	42.72	4.71
1216	1216K	80	140	26	30.8	16.94	1.65
1216	2216K		140	33	37.5	19.98	2.19
1216	1316K		170	39	68.5	33.32	4.19
1216	2316K		170	58	98.5	45.49	5.7
1217	1217K	85	150	28	37.9	20.52	2.1
1217	2217K		150	36	44.8	23.61	2.53
1217	1317K		180	41	75.7	37.83	4.95
1217	2317K		180	60	107.6	51.43	6.73
1218	1218K	90	160	30	43.8	23.43	2.44
1218	2218K		160	40	54	28.52	3.22
1218			190	43	90	45.13	5.99
1218	2318K		190	64	116.7	57.64
1219	1219K	95	170	32	49.2	27.05	8.27
1219	1519K		170	43	64.2	34.17	3.06
1219	1319K		200	45	101.8	51.67	6.98
1219	1220K		180	34	53.3	29.56	3.68
1220	1220K	100	180	34	53.3	29.56	3.68
2220	2220K		180	46	75	40.64	4.95
1320			215	47	110.3	58.12	8.64
2320	2320K		215	73	147.8	78.52	12.4
